Red Line D4 ATF Gear Oil

Red Line D4 ATF (Automatic Transmission Fluid)

Red Line’s most versatile Automatic Transmission Fluid, use where Dexron III®, Dexron II®, Mercon® and Mercon V® fluids are recommended, for use in automatic, manual transmissions and power steering

D4 ATF is a fully-synthetic product designed with superior low-temperature properties compared to a Dexron III® fluid, and the improved shear-stability requirements which is part of the Mercon V® specifications.

D4 ATF also provides a GL-4 level of gear protection, making it a superior product for transmissions and transaxles. The balanced frictional characteristics provides smooth and consistent shifts for extended drain intervals. The superior stability compared to petroleum ATFs allows high-temperature operation without varnishing valves and clutches which leads to transmission failure.

Red Line D4 ATF is also suitable for use in some power steering systems including the BMW E36 / E46 and the Nissan 350Z

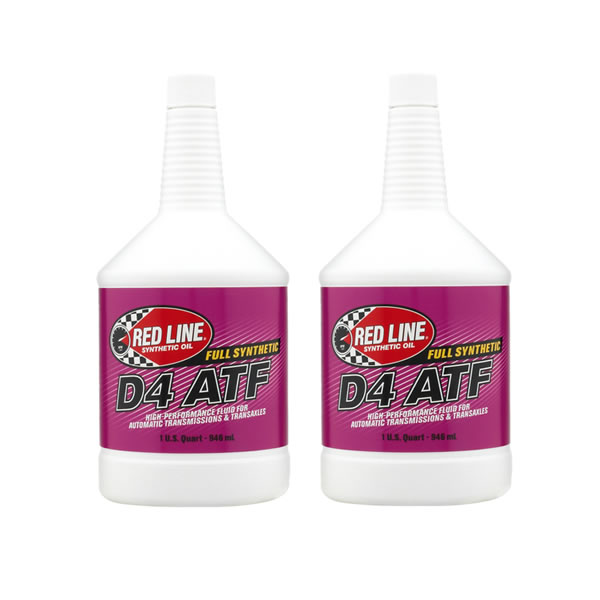

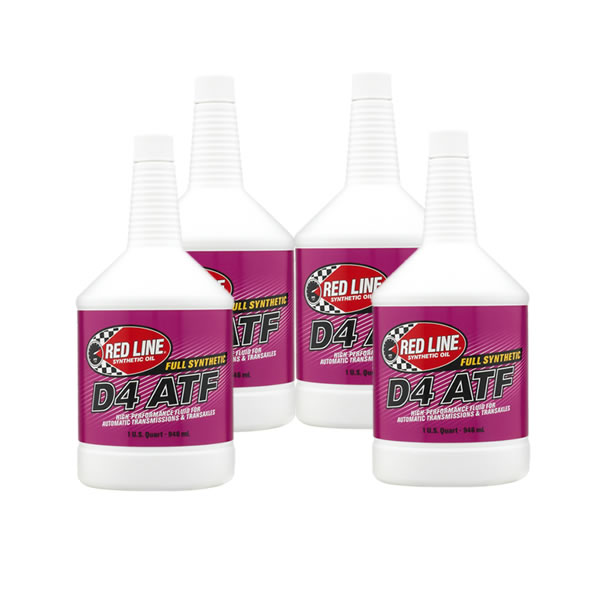

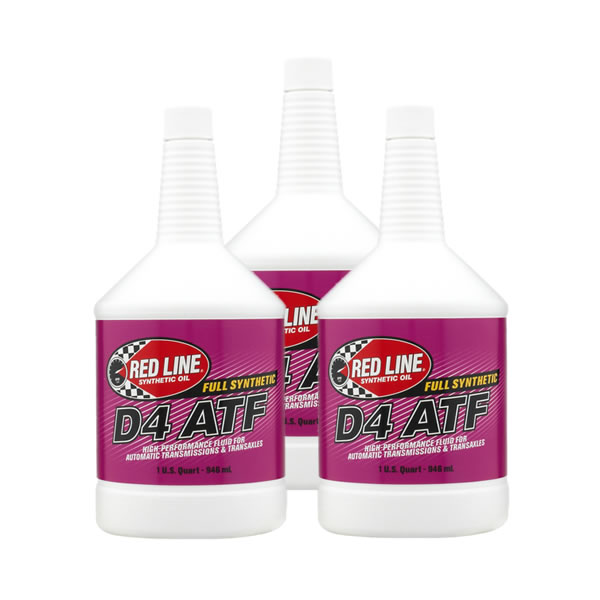

Sold in 1 US Quart Bottles which is 946ml

Red Line are an American company and their products come in US Quart or US Gallon sizes. Use our handy guide to find out how many bottles you need for your application.

US Quarts	Litres
1 US Quart	0.946
2 US Quarts	1.892
3 US Quarts	2.838
4 US Quarts	3.784
US Gallons	Litres
1 US Gallon	3.784
2 US Gallons	7.568

Red Line ATFs are designed for the perfect shiftability.

With the most stable base oils to provide improved durability. Conventional ATFs lose viscosity through the shearing action in the transmission and evaporate at high temperatures. Red Line ATFs are shear-stable and very resistant to evaporation even at extreme temperatures.

High Performance ATF Benefits

• Red Line offers the widest selection of fully-synthetic ATF on the market today
• Each offer improved thermal stability, maintain viscosity levels, and feature lower volatility while providing the required frictional characteristics of each fluid’s OEM-style replacement
• Reduced oxidation and lower volatility at high temperature
• Allows high-temp operation without varnishing valves and clutches
